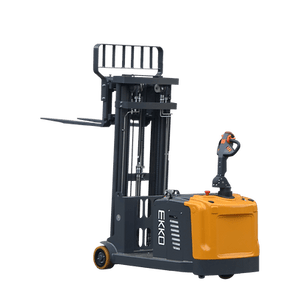

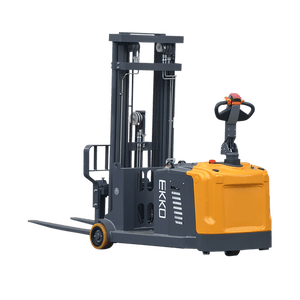

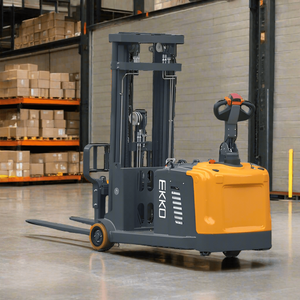

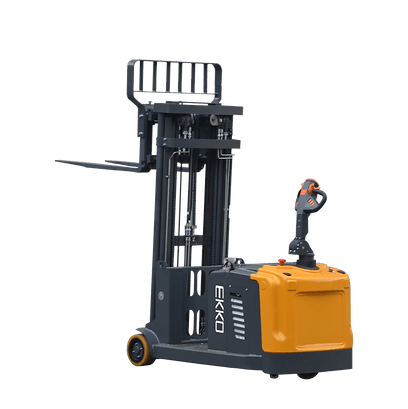

EKKO EK13S-177 Counterbalanced Walkie Stacker SIDE-SHIFTING
SKU: EK13S-177 | SALE | Back Ordered
- Regular price
- $18,238.10
- Sale price
- $18,238.10
- Regular price
-
$21,899.00
You Save: 16% ($3,660.90)
Shipping calculated at checkout.
Couldn't load pickup availability
Out of stock
FALL SALE – SAVE ON SELECT PRODUCTS
Take advantage of limited-time fall pricing during our seasonal event.
The EKKO EK13S-177 Fully Powered Counterbalanced Walkie Stacker includes SIDE-SHIFTING and is designed with the combination of the versatility of forklift and a walkie stacker. It is ideal for loading and unloading trucks, loading docks, stock rooms, manufacturing floors and warehousing.
Made from high quality steel and components with durable quality drives to withstand any terrain, usage, impact and directional changes for the use of any application with confidence and assurance.
- Load Capacity 2860 lb

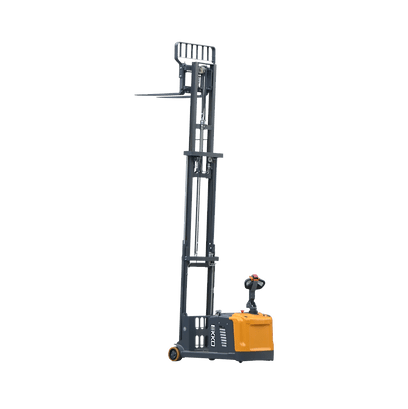

- Raised Height 177" (14.75ft)
- SIDE-SHIFTING
- Adjustable Forks 8.6-28.3"
- Fork Length 45.3"
- Tilt 2/5 Degree
- Curtis Controller
- 24V AC Drive Motor
- 24V Lift Motor
- EPS (Electronic Power Steering)
- Polyurethane Wheels
- Ergonomic Handle and Controls
- Steel Construction
- Robotic Welding
- Charger Included
- Battery Included
- 3 Years Limited Warranty
Specifications
| Model | EK13S-177 | |
| Drive type | Electric | |
| Type of operation | Walike type | |
| Load Capacity | Q (LBS) | 2860 |
| Load Centre | c (Inch) | 23.6 |
| Distance between fork backrest and front wheel | x (Inch) | 5.91 |
| Wheelbase | y (Inch) | 46.81 |
| Service Weight(with battery) | LBS | 4070 |
| Tire material | PU | |
| Driving wheel size | ?w(Inch)? | ?9.842.95 |
| Bearing wheel size | ?w(Inch)? | ?9.844.72 |
| No of Driving wheel,Balance wheel/Bearing wheel(X=Driving wheel | 2/1X | |
| Front wheelbase | b10 (Inch) | 34.09 |
| Rear wheelbase | b11 (Inch) | 0 |
| Mast/fork carriage tilt, forward/backward | ?/? () | 2/5 |
| Lowered mast height | h1 (Inch) | 78.74 |
| Free lift height | h2 (Inch) | 59.84 |
| Lift height | h3 (Inch) | 177.17 |
| Extended mast height | h4 (Inch) | 214.53 |
| Height of seat/stand-on platform | h7 (mm) | 5 |
| The height of handle in the operation position | h14 (Inch) | 43.5/56.69 |
| Overall Length | l1 (Inch) | 107.8 |
| Body Length | l2 (Inch) | 62.52 |
| Overall Width | b1/ b2 (Inch) | 39.29 |
| Fork Size | s/e/l (Inch) | 1.38/3.94/45.28 |
| Fork Width | b5 (Inch) | 8.66-28.35 |
| Ground clearance under mast | m1 (Inch) | 3.54 |
| Min Ground clearance | m2 (Inch) | 3.39 |
| Aisle width for pallets 1000*1200 crossways | Ast (Inch) | 115.95 |
| Aisle width for pallets 800*1200 lengthways | Ast (Inch) | 120.28 |
| Turing Radius | Wa (Inch) | 56.89 |
| Driving Speed,load/unload | (km/h) | 5.2/5.5 |
| Lifting Speed load/unload | (mm/s) | 100/120 |
| Lowered Speed load/unload | (mm/s) | 136/120 |
| Maximum gradeability load/unload | (%) | 6/8 |
| Brake Type | Electromagnetic brake | |
| Drive Motor | (kW) | 2.5 |
| Lift Motor | (kW) | 2.5 |
| Battery voltage/rate capacity | (V/Ah) | 24/210 |
| Battery Weight(5%) | (lbs) | 460 |
| Type of drive control | AC | |
| Noise level | (dB(A)) | 70 |
| Steering type | EPS |
