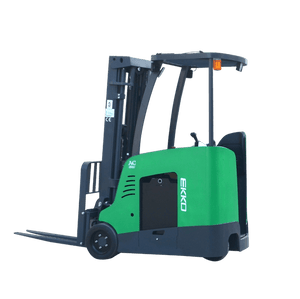

EKKO EK18RF-Li Stand-up Rider Forklift
SKU: EK18RF-LI | SALE | Back Ordered
- Regular price
- $45,219.05
- Sale price
- $45,219.05
- Regular price
-
$54,299.00
You Save: 16% ($9,079.95)
Shipping calculated at checkout.
Couldn't load pickup availability
Out of stock
Estimated Delivery -
WINTER SALE – SAVE ON SELECT PRODUCTS
Take advantage of limited-time fall pricing during our seasonal event.
Overview
The EKKO EK18RF-Li Stand-up Rider Forklift is expertly designed to handle all your material handling needs with efficiency and precision. Ideal for loading and unloading trucks, working on loading docks, stock rooms, manufacturing floors, and warehouses.
Made from high quality steel and components with durable quality drives to withstand any terrain, usage, impact and directional changes for the use of any application with confidence and assurance.
Key Features
- Load Capacity: 4,000 lbs
- Lift Height: 216" (18 ft)
- Free Lift: 61.34"
- Side Shift: Enhanced accuracy and control
- Fork Adjustability: 9.4-35.6"
- Fork Length: 45.3"
- Steering: Hydraulic steering for superior maneuverability
- Controller: Curtis Instrument Controller
- Motor: German AC Drive Motor
- Battery: 48V/350Ah Lithium with a 440V three-phase charger
- Tires: Solid cushion load tires and polyurethane drive tires
- Construction: High-quality steel with robotic welding
- Warranty: 3-Year Limited Warranty

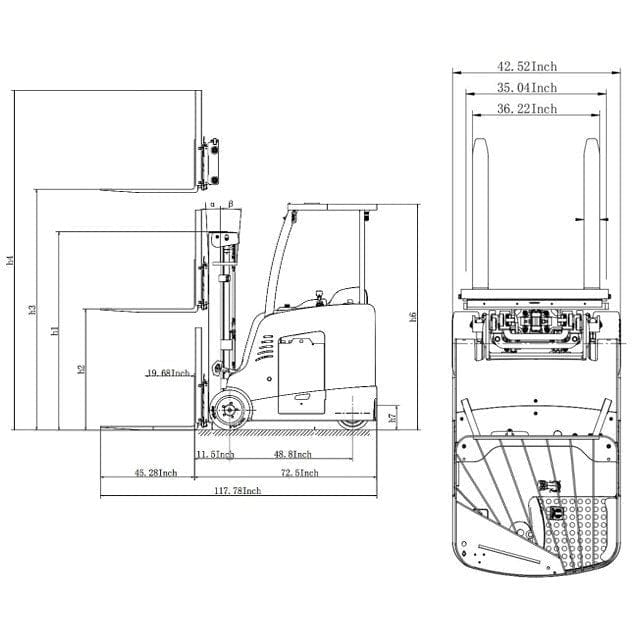

Specifications
| Model |
| EK18RF-Li |
| Power unit |
| Electric |
| Operation Type |
| Rider |
| Loading capacity | Q (LBS) | 4000 |
| Load center | c (Inch) | 24 |
| Axle center to fork face | x (Inch) | 11.5 |
| Wheelbase | y (Inch) | 48.8 |
| Service weight with battery | LBS | 7940 |
| Wheels type |
| Solid wheel |
| Driving wheel size | Φ×w(Inch) | 16×7-10.5（15.98*7.01*10.51） |
| Bearing wheel size | Φ×w(Inch) | 13.5×5.2 |
| Wheels, number front/rear |
| 1×/2 |
| Track width | b10 (Inch) | 35.04 |
| Mast/fork carriage tilt, fwd/bwd | a/b (°) | 3/5 |
| Lowered mast height | h1 (Inch) | 91.77 |
| Free lift height | h2 (Inch) | 61.34 |
| Lift height | h3 (Inch) | 216.54 |
| Extended mast height | h4 (Inch) | 248.43 |
| Height of overhead guard (cabin) | h6 (Inch) | 90.08 |
| Height of seat/stand-on platform | h7 (Inch) | 9.06 |
| Overall length | l1 (Inch) | 117.78 |
| Length to fork face | l2 (Inch) | 72.52 |
| Overall width | b1/ b2 (mm) | 42.52/42.13 |
| Fork dimensions | s/e/l (Inch) | 1.58/4.72/45.28 |
| Width of forks | b3 (Inch) | 36.22 |
| Ground clearance under mast | m1 (Inch) | 2.95 |
| Min. Ground clearance | m2 (Inch) | 3.86 |
| Aisle Width Requirement | Ast (FT) | 10.5 |
| Min. Turning radius | Wa (Inch) | 58.5 |
| Travel speed,laden/unladen | (km/h) | 12/13 |
| Lifting speed, with/without load | (mm/s) | 250/400 |
| Lowering speed, with/without | (mm/s) | 240/258 |
| Climbing ability, with/without | (%) | 6/10 |
| Service brake |
| Hydraulic |
| Drive motor, 60-minute rating | (kW) | 6 |
| Lift motor rating at S3 15% | (kW) | 7.7 |
| Battery according to DIN 43531/35/36 A,B,C,no |
| no |
| Battery voltage/rated capacity | (V/Ah) | 48V/350Ah Lithium |
| Power consumption VDI | (mm) | 38*18.1*29.53 |
| Type of drive control |
| AC |
| Noise level at operator‘s ear | (dB(A)) | ≤70 |
| Steering type |
| Hydraulic steering |
Why Choose the EKKO EK18RF-Li?
Built for performance, durability, and reliability, the EKKO EK18RF-Li Stand-up Rider Forklift delivers unmatched value for a wide range of material handling tasks. With its high-tech German AC motor, advanced Curtis controller, and premium lithium battery, it is the ideal solution for your material handling operations.
