iDEAL MSC-18K-X-236 Mobile Column Lift, Two Column Set, 36,000 lbs. ALI Certified
SKU: MSC-18K-X-236 | SALE | Back Ordered
- Regular price
- $22,510.00
- Sale price
- $22,510.00
- Regular price
-
$27,099.00
You Save: 16% ($4,589.00)
Shipping calculated at checkout.
Couldn't load pickup availability
Out of stock
Estimated Delivery -
WINTER SALE – SAVE ON SELECT PRODUCTS
Take advantage of limited-time fall pricing during our seasonal event.

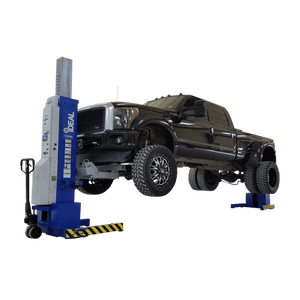

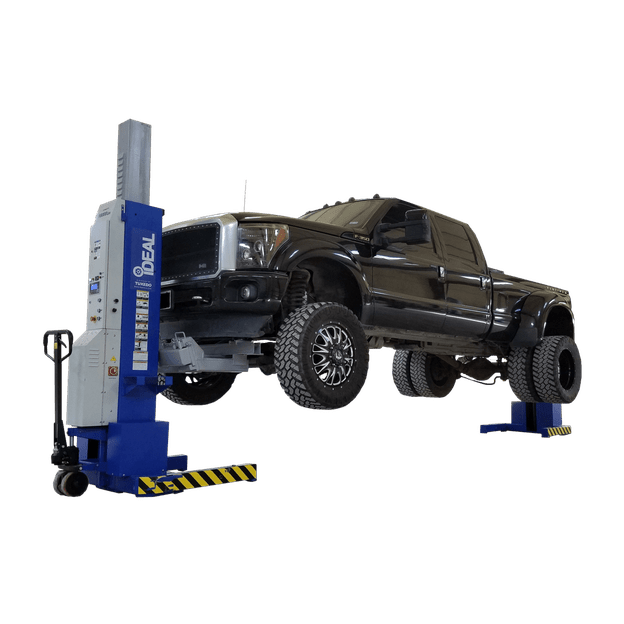

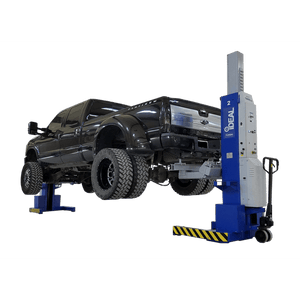

iDEAL MSC-18K-X-236 ALI Certified Mobile Column Set
The iDEAL MSC-18K-X is ALI-certified and available in sets of two, four, and six columns to provide up to 108,000 lbs. of lifting capacity. The MSC-18K-X is designed for the heavy-duty user to lift fire trucks, school buses, and other large commercial vehicles by the wheels.
Optional accessories provide the flexibility to lift passenger vehicles and light trucks and wheels free lifting for expanded service. Technicians realize improved productivity through the safe, simple operation of the lift at each column using the well-designed control panel.
The mobile design and quick setup of the MSC-18K-X allow technicians to easily transform a flat bay into a lift bay for improved use of shop space. The small footprint of the MSC-18K-X allows for storage without impacting valuable shop space.
Features
- ALI certified
- Ali Certified
- Up To 108,000 Lbs. Capacity
- 24Vdc Battery Operation With Onboard Charging System
- Communication Cable With Retractable Cable Reels
- U-Shape Wiring Configuration For Quick Entry And Exit
- Convenient Operation From Any Column
- Independent Mechanical Locking System
- Optical Encoder For Continuous Column
- Synchronization
- Portability For Out Of The Way Storage Using Pallet
- Jack Style Base
- Easy To Move Adjustable Forks
- Emergency Shutoff Switch On Each Column
- Master Control Panel For Individual Or Paired
- Synchronized Operation Simple Operation Via Lcd Screen And Keypad
- Led Light With Magnetic Base (1 Per Two Columns) Available In Two, Four Or Six Column Configurations Optional Ali Certified Accessories For Expanded Service Operations
Specifications
| Lift Models | MSC-18K-X-236 | MSC-18K-X-472 | MSC-18K-X-6108 |
| Column Configurations | 2 Column | 4 Column | 6 Column |
| Capacity | 36,000 lbs | 72,000 lbs | 108,000 lbs |
| AC Power (Input, Per Column) | 100-140VAC, 60Hz, 1 PH | ||
| DC Power (Output, Per Column) | 24VDC | ||
| Lifting Height | 67.1" | ||
| Column Heights Min/Max | Min. 88.6" / Max. 155.5" | ||
| Overall Width | 44.1" | ||
| Fork Adjustable Range | 12.6"- 22" | ||
| Fork Length | 17.9" | ||
| Fork to Column Clearance | 10" | ||
| Rise Time | 100S | ||
| Descent Time | 60S | ||
| Maximum Distance between Columns | 32' 8" | ||
| Minimum Concrete Surface Strength | 3000 PSI | ||
| Noise Level | 70 dB(A) | ||
| Set-Up / Operation | Indoors | ||
| Battery Type (Not included) | 12VDC Sealed Deep Cycle Battery (BCI Group 31, AH-105) | ||
| Ship Weight | 1,584 lbs per Column | ||
