Stratus SAE-C10X 10,000 Lbs Extra Wide Two Post Lift

Overview

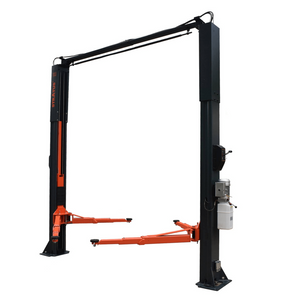

Introducing the Stratus 2-In-1 Clear Floor Car Lift SAE-C10X, a cutting-edge 2-Post Lift that combines both asymmetric and symmetric lifting capabilities. Engineered for versatility and strength, it boasts an impressive 10,000 lbs capacity. With a direct drive system powered by a single-point manual release, this lift ensures optimal control and efficiency.

Its extra-wide design accommodates a variety of vehicles, while the clear floor feature provides an unobstructed workspace underneath, making it an essential addition to any garage or workshop. Whether you're working on compact cars or larger trucks, the Stratus SAE-C10X delivers unmatched performance and reliability.

Important Notes

• A $425 surcharge applies to the following states: OR, WA, ID, MT, ND, SD, and ME.
• Buyer is responsible for unloading freight; additional charges may apply if unloading exceeds 30 minutes.


Key Features

• 10,000 lbs Lifting Capacity: Handles vehicles of various sizes with ease.
• 2-in-1 Design: Symmetric and asymmetric lifting options for maximum versatility.

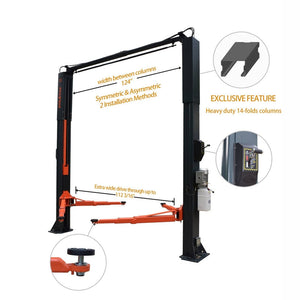

• Extra-Wide Drive Through: 112" symmetrical and 107 11/16" asymmetrical clearance.
• Clear Floor Design: Provides unobstructed workspace for easier maintenance.
• Heavy-Duty 14-Fold Columns: Built for durability and long-term use.

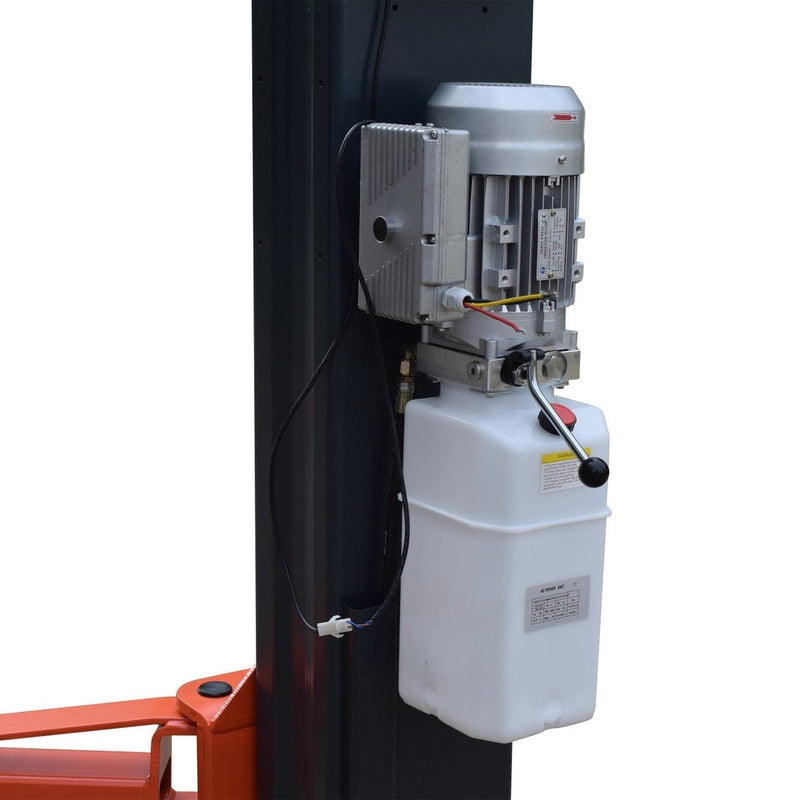

• Direct Drive System: Ensures smooth and efficient lifting operations.

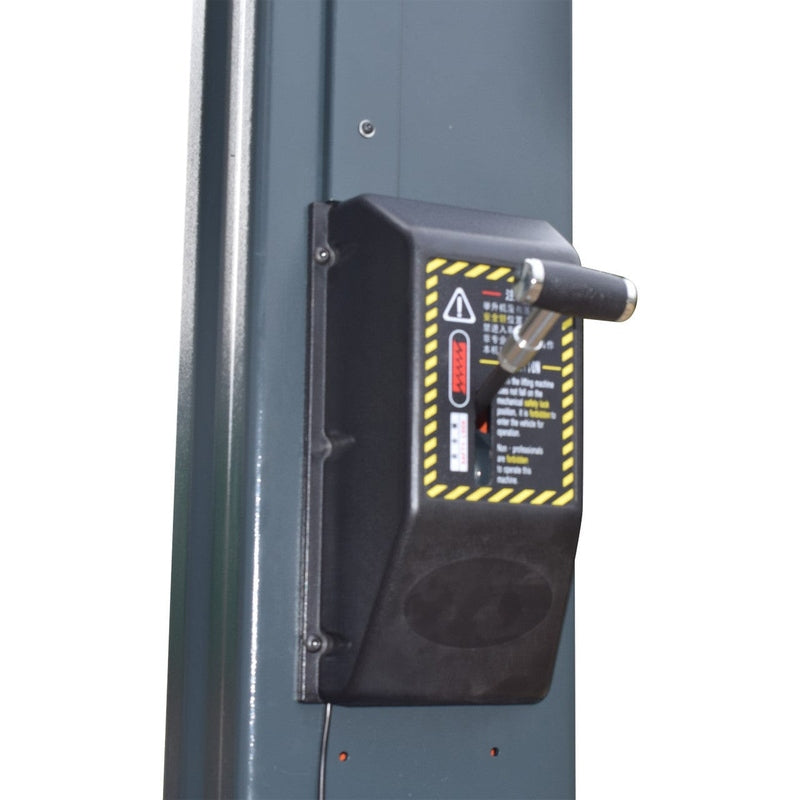

• Electric Safety Lock Release: Prioritizes safety during every lift.

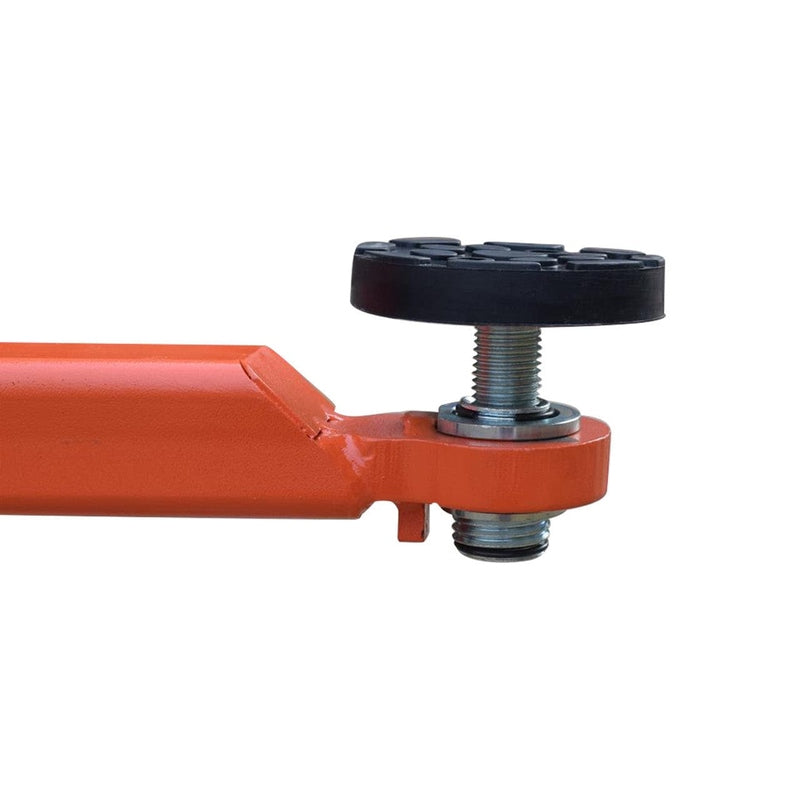

• 4 Screw-Up Rubber Pads: Protects vehicles during lifting.

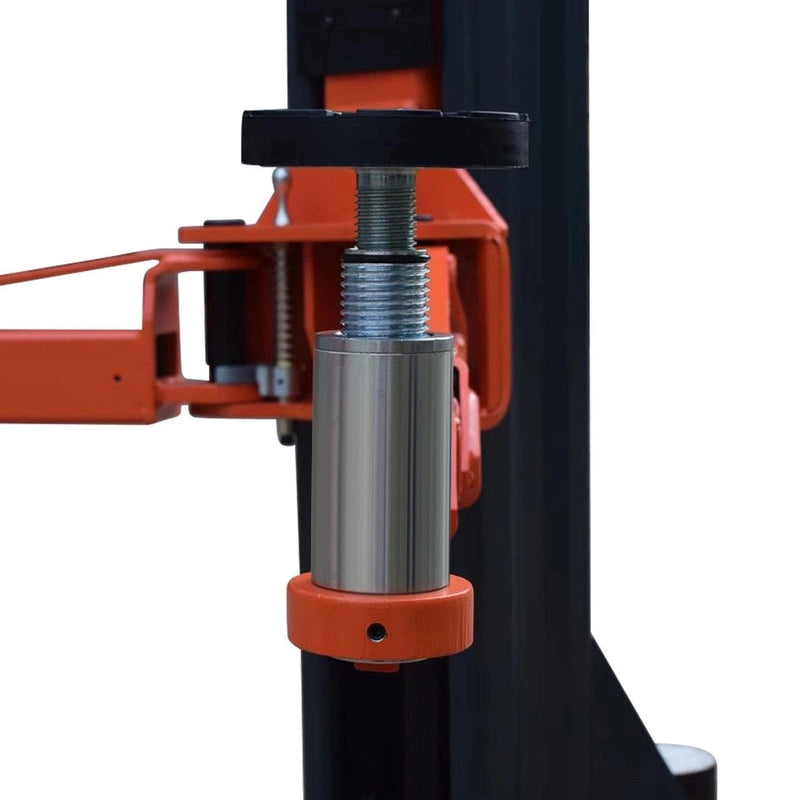

• Truck Adapters Included: Includes 4 x 4" (100 mm) adapters for larger vehicles.

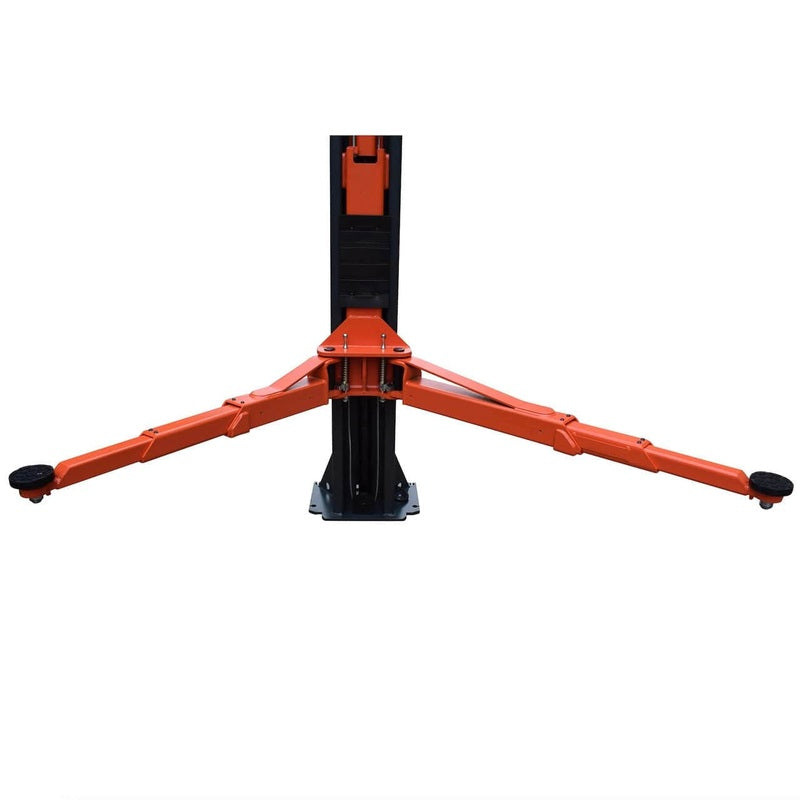

• Automatic Arm Restraints: Locks arms in place for secure lifting.
• Anti-Surge Valves: Protects the hydraulic system.
• Powder Coating Finish: Durable granite gray (RAL 7026) and rein orange (RAL 2004) finish for a sleek appearance.
• Proof of Strength: Dynamic test with 115% rated capacity and static test with 150% rated capacity.

Specifications

Resources

For more detailed information and guidance, you can download the following:

• Download Manual (PDF)
• Download Brochure (PDF)

Warranty

• 5 Years on Structural Components
• 3 Years on Hydraulic Components
• 2 Years on Electrical Parts

Stratus stands behind its equipment with industry-leading warranties, giving you peace of mind and reliable performance for years to come.

FAQs

• What thickness of concrete do you recommend?
  We recommend 6-12 inches of reinforced concrete that has cured for at least 28 days.
• What is the recommended PSI for the concrete?
  We recommend a PSI of 3,000.
• Does the lift come with anchor bolts and how many?
  Yes, the lift comes with anchor bolts. There are 16 in total.
• What are the specs of the anchor bolts?
  The anchor bolts are 3/4" diameter and 6" long.
• What are the torque specifications?
  We recommend 90 foot-pounds, never less than 80 or more than 110 foot-pounds.
• What is the recommended breaker for this lift?
  We recommend a 30A breaker.
• Does this lift come with a plug?
  The lift does not come with a plug. You will need a 220V-250V, 30A plug.
• How do I hook up the electrical?
  Yellow/green is ground, and the other two wires are hot.
• How long does the power cord reach?
  The power cord is 11 feet long.
• Is there a way to change the speed of the lift?
  Yes, with the oil flow valve. Tighten it (clockwise) to slow the lift, or loosen it (counterclockwise) to speed it up.
• How do I lower the lift that is stuck in the air?
  Release the safety locks, then release the pressure from the hydraulic system.
